Wireless Local Area Network (WLAN) is the best communications platform for transmitting data to building users over a wireless network. The system provides a communication platform for the access of employees, vendors, visitors, and all people traveling in the building to services such as audio and video, high-speed internet, routing, and e-mail.
This system uses Indoor AP to cover the interior spaces and Outdoor AP to cover the outdoor spaces of the hotel. It is worth noting that the Wireless System Controller located at the hotel's data center is applied to control the speed and performance of each AP.
By defining different SSIDs in this system, it is possible to provide different types of access at different speeds, as well as various services to working groups, such as employees, vendors, operators, and hotel visitors.

The following are the benefits of using this system:
1. Specifying different SSIDs in this system allows us to provide accesses and services at different speeds for groups such as employees, vendors, operators, and hotel visitors.
2. All APs at the hotel is powered via PoE, using the data cable connected to it.
3. APs have 3*3 MIMO antenna and can provide service to more than 256 users, in addition to having IEEE 802.11 a/b/g/n/ac standards and WPA/WPA2, AES, and TKIP protocols.

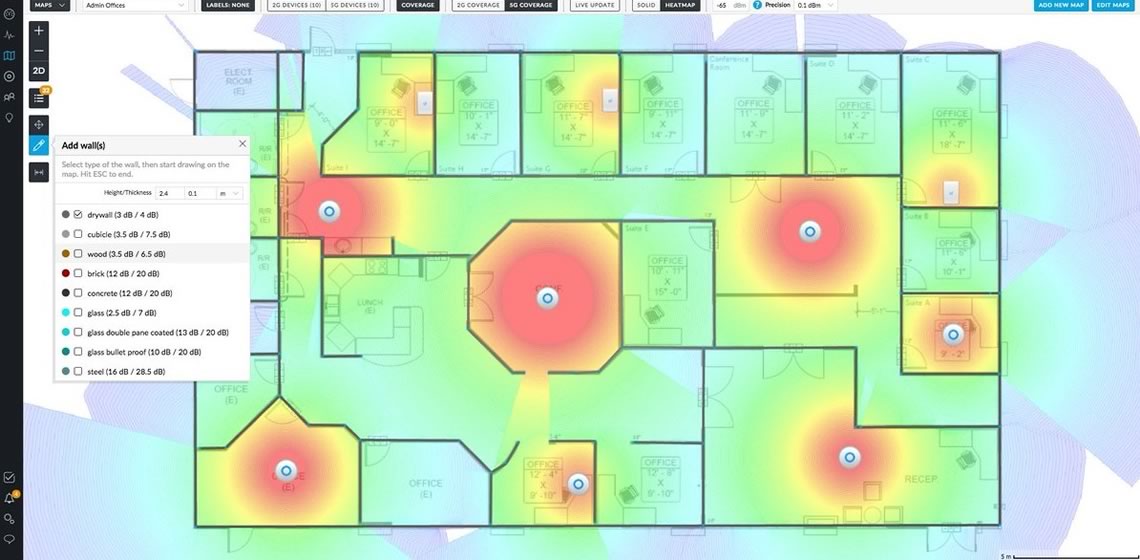

Further, the Airmagnet simulator software is used to design the number of wireless systems required in the process. Simulation is performed by specifying map dimensions, noisy zones, and access points technical specifications for the software and consequently, the best executive map is developed in virtual mode.
